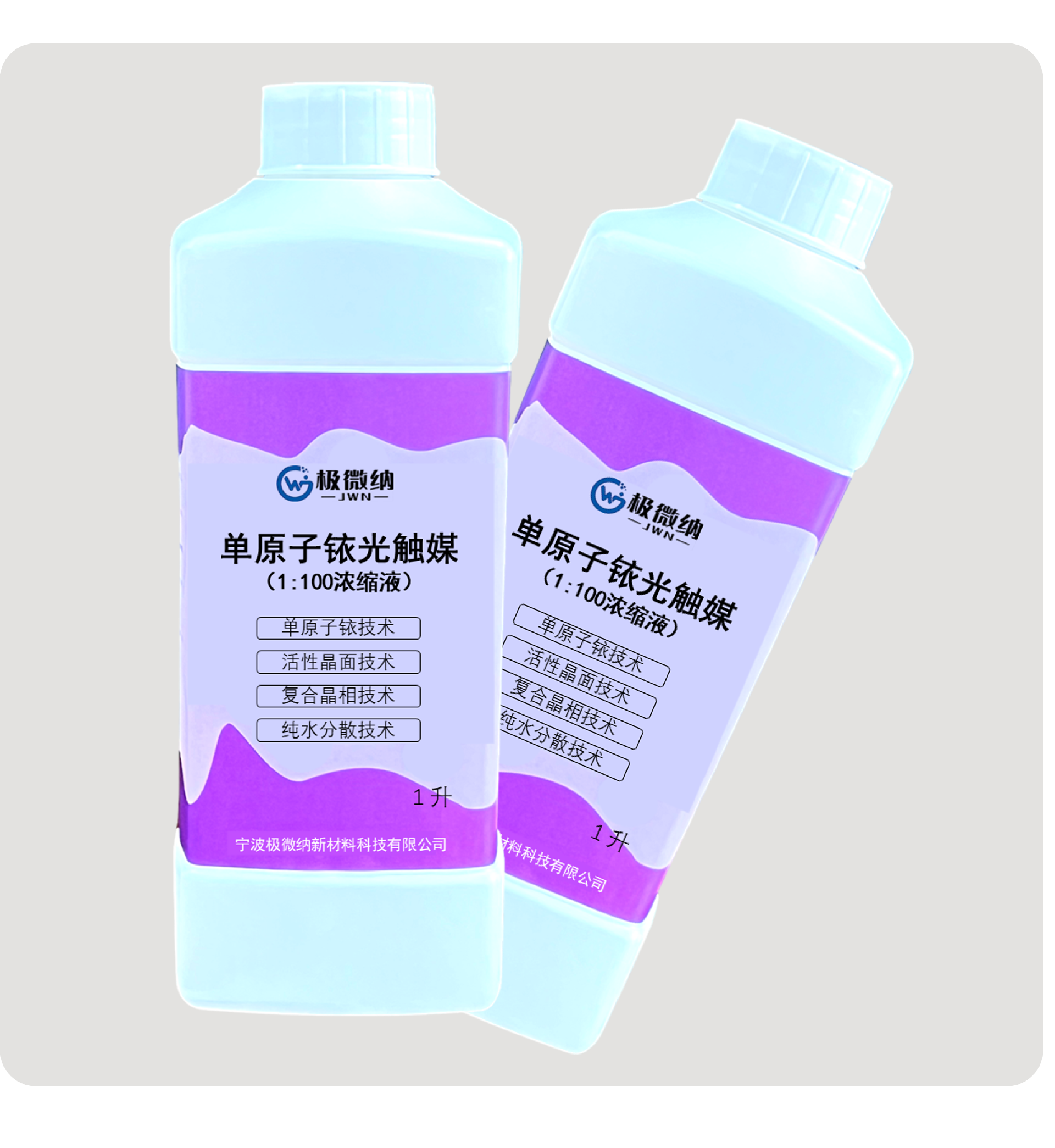

I. Basic overview of the product

Monoatomic Iridium photocatalyst product is an active photocatalyst concentrate developed by the Peking University doctoral team with 22 years of experience in the development of photocatalyst products, which took 5 years to develop. The main advantages of the product are:

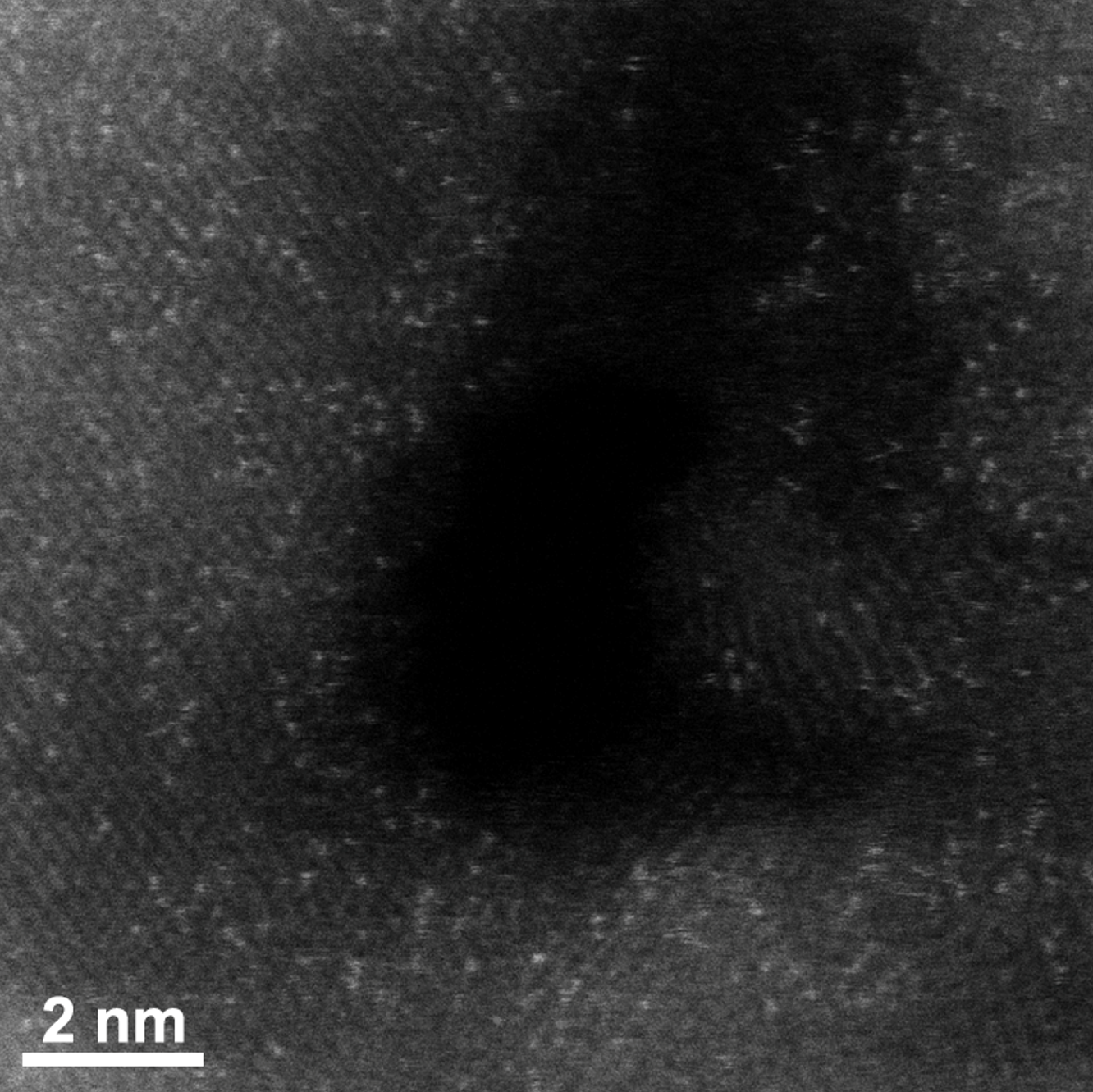

(1) Monoatomic iridium loading technology: one is a rare precious metal iridium, with excellent electron conductivity and oxidation-reduction characteristics; Second, the single atom load has higher catalytic activity and more active sites. The synergistic coupling of the two greatly improves the activity of the photocatalyst, and completely decomposes harmful pollutants such as formaldehyde, benzene series, TVOC, viruses, and odors.

(2) Active crystal surface technology: The product relies on the companys JWN-TO-A01 powder, based on ultra-fine nano TiO2 particles containing a large number of active {100} and {001} crystal surfaces, the product itself has good photocatalytic performance.

(3) Composite crystal phase technology: nano TiO2 composite crystal phase increases the separation of photogenerated electron-hole pairs, and improves the application effect of photocatalysis in the treatment of air pollutants such as formaldehyde and benzene.

(4) Pure water dispersion technology: no additives, concentrated liquid suspension state is stable, 1:100 dilution after use, can be sprayed on the surface of the substrate to form a uniform, dense TiO2 film, no marks, no spots.

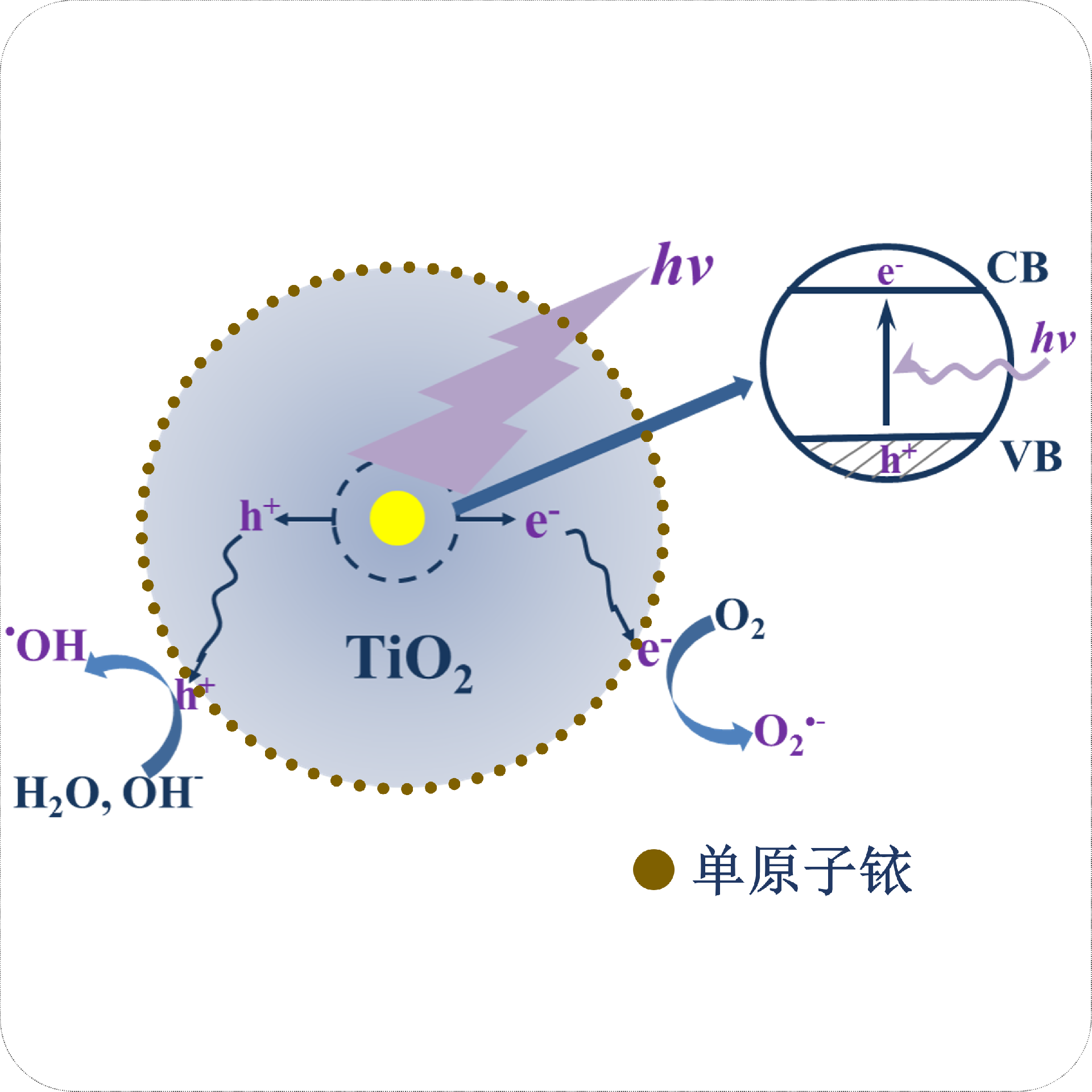

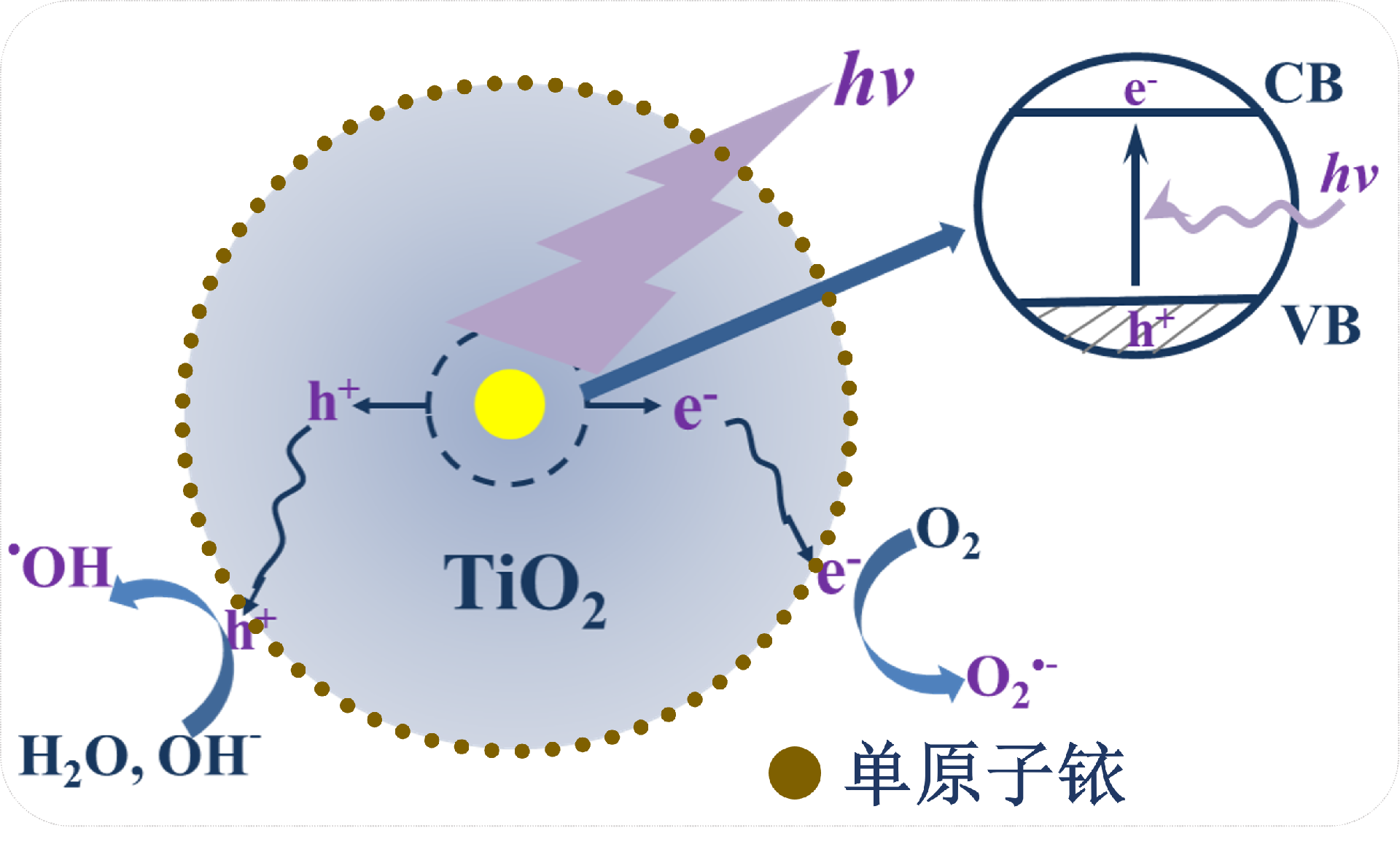

产品核心技术原理：单原子铱负载技术

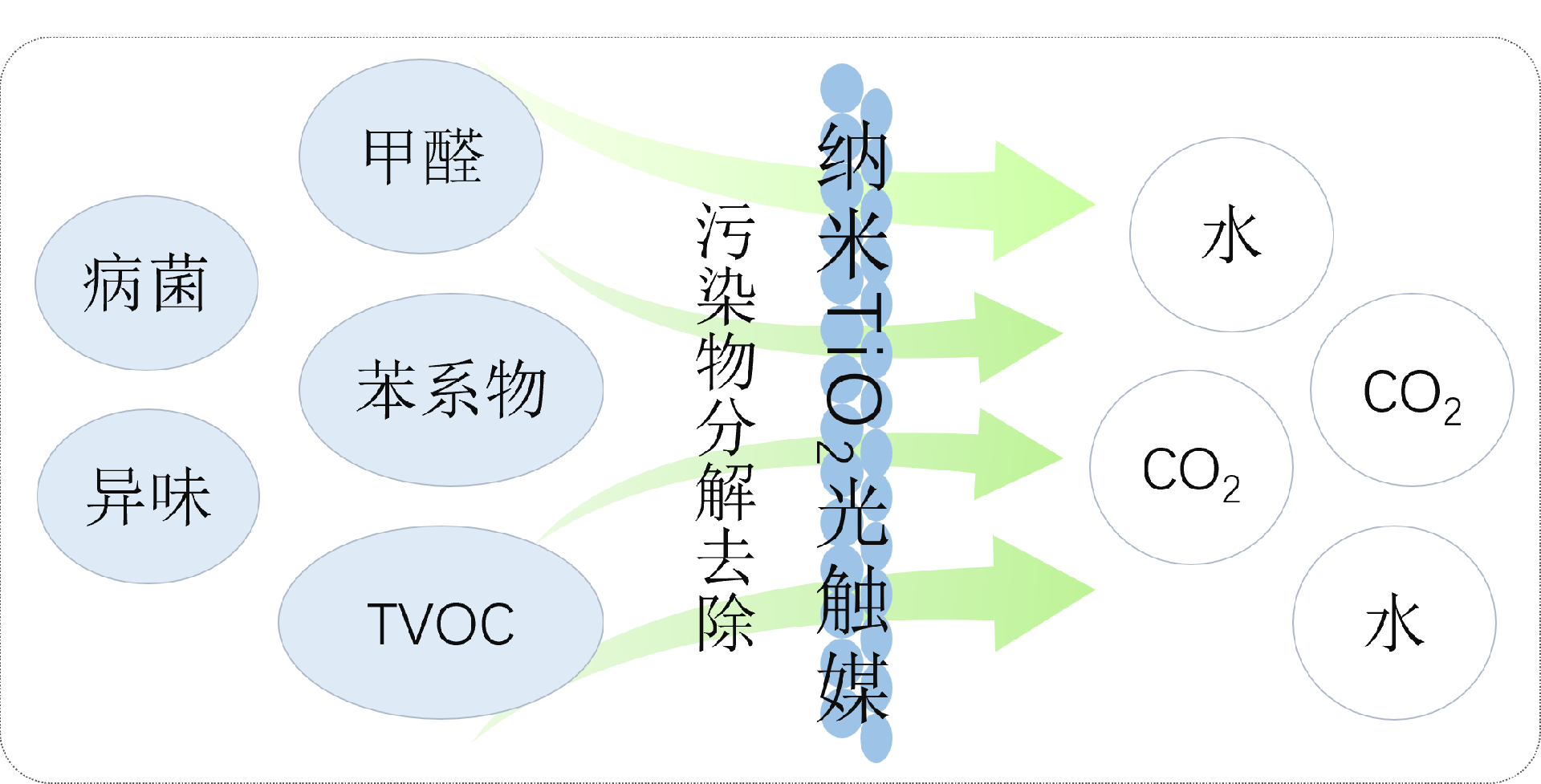

彻底分解甲醛、苯系物、TVOC、病毒、异味等

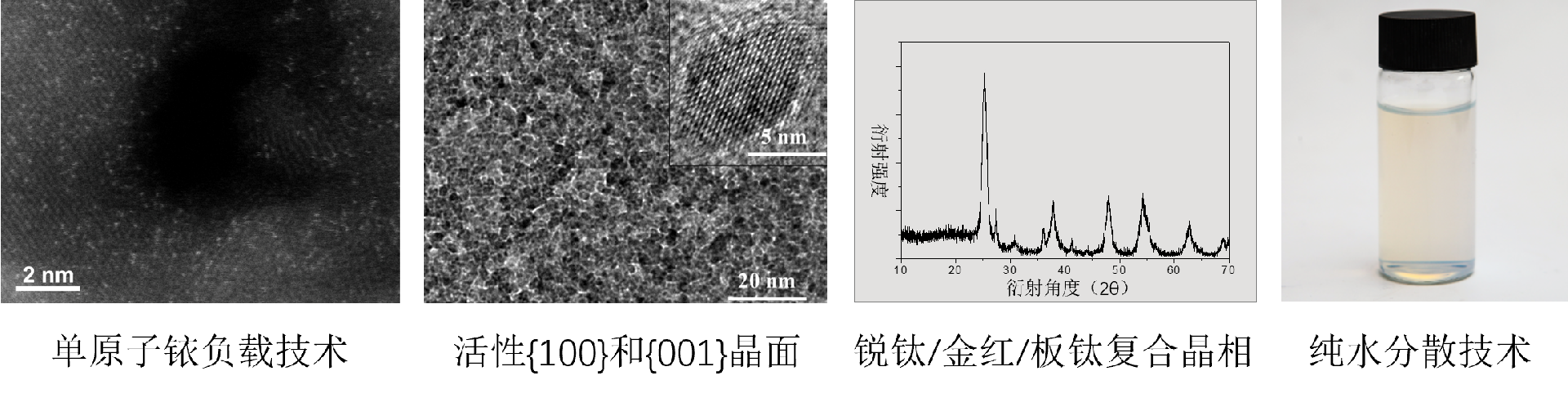

2.product technical advantages

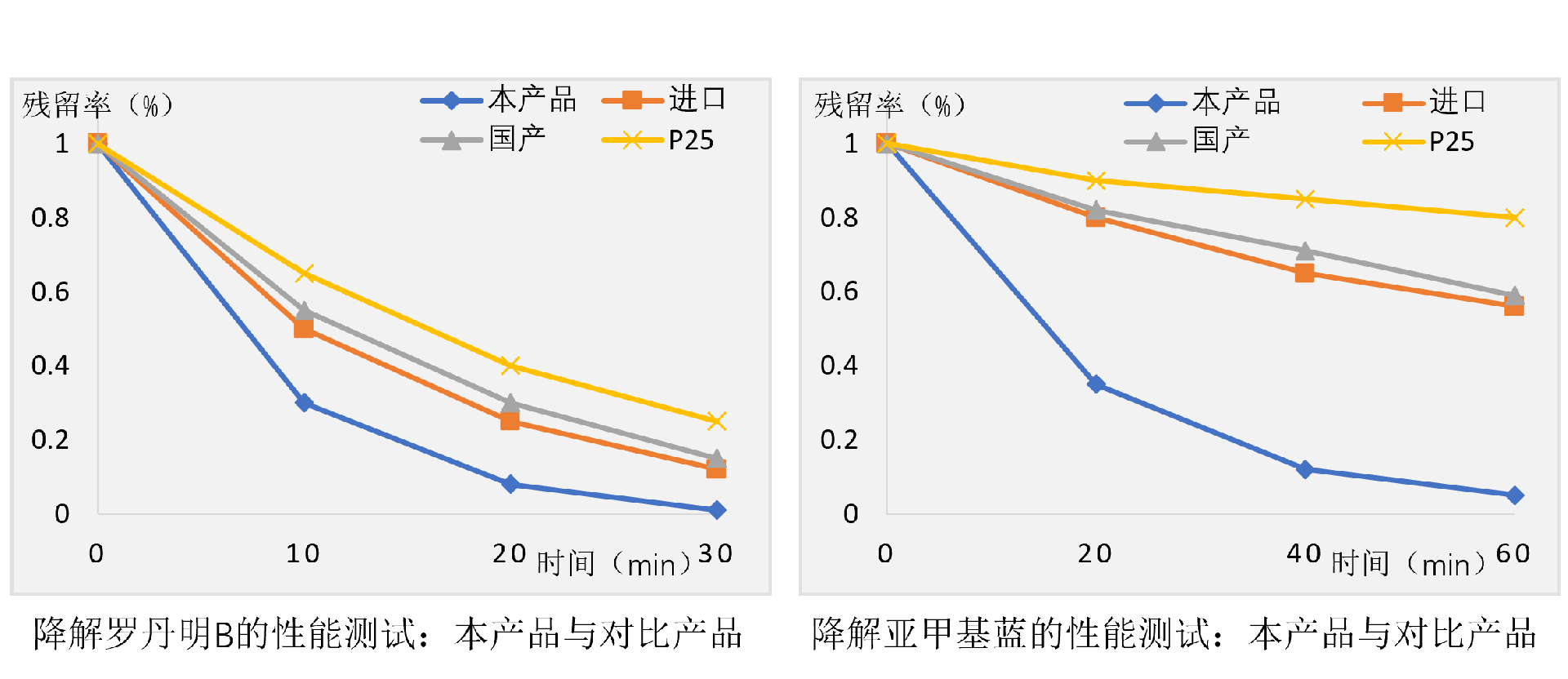

3. Product catalytic activity

Compared with imported high-quality photocatalysts, domestic high-quality photocatalysts and P25, the degradation efficiency of Rhodamine B is 2.0, 2.2, 3.5 times of them, respectively. The degradation efficiency of methylene blue was 3.9, 4.3 and 7.8 times that of methylene blue respectively.

4.product use advantage

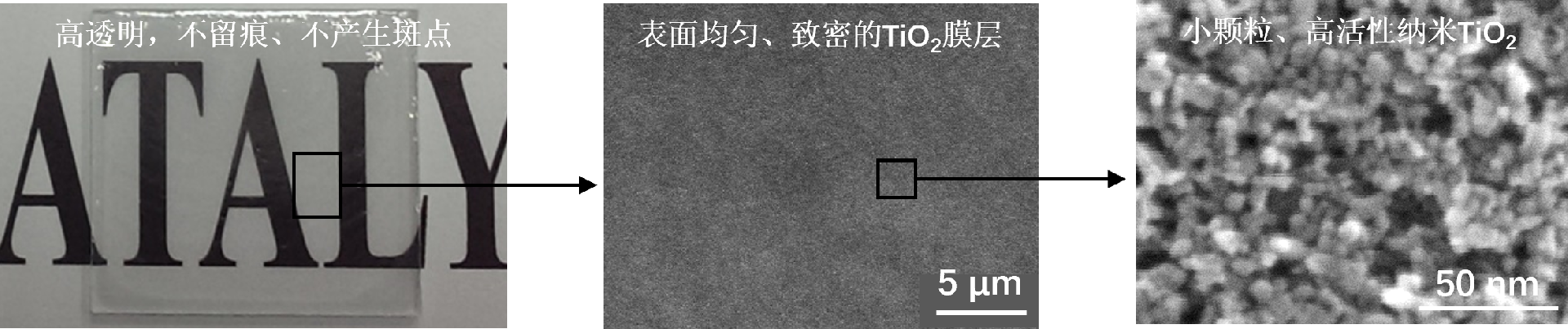

After dilution of 1:100, nano TiO2 photocatalyst dispersion liquid is formed, and sprayed on the surface of the substrate to form a uniform and dense TiO2 film layer, without leaving traces or producing spots, expanding the application of nano TiO2 photocatalyst in materials such as light transmission and aesthetics.

5. Product use method

• Dilute the product 100 times with deionized water and mix to get a photocatalytic liquid.

• Before cleaning the floor, furniture, sofa, leather goods and other objects, ensure that the surface is clean and clean.

• At a distance of 20 cm, evenly spray a layer of photocatalyst on the surface of the target object, and wipe the uneven part with a clean and slightly wet rag.

• It is recommended to be used in an environment with sufficient light, and keep ventilation as much as possible to dry it after spraying; In order to enhance the use of photocatalysts, mosquito or bactericidal ultraviolet lamps can be used to irradiate the spray target.

• Each 500 ml of photocatalyst diluent can be sprayed in an area of about 50 square meters.
